IK Sprayers Seal Kit
IK Sprayers Seal Kit

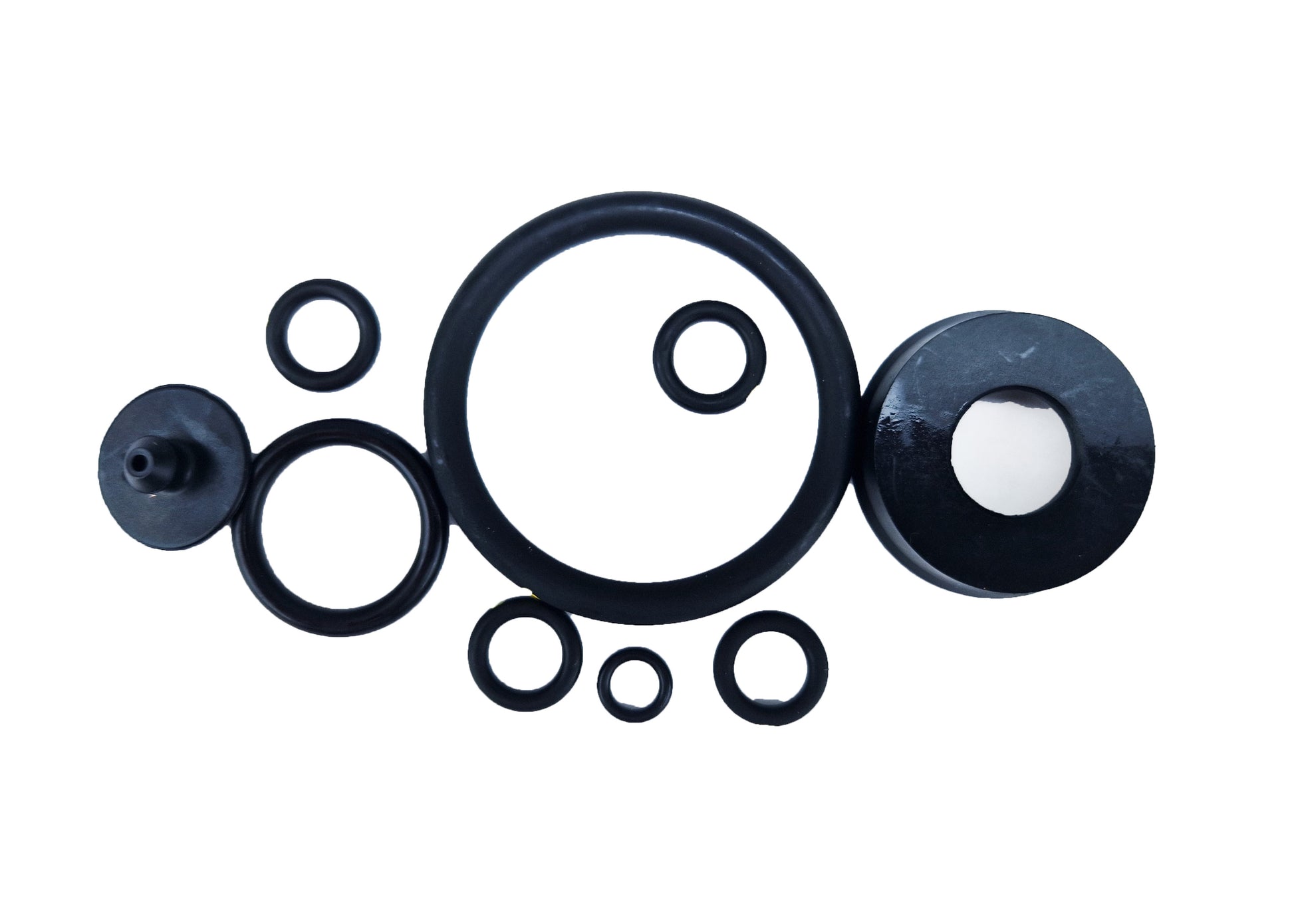

This sprayer repair kit contains 9 parts that are most commonly replaced during maintenance of your sprayer within out IK Multi range; this includes seven sealing O-rings, a new flange for the inside of the compression shaft, and one-way valve for the base of the compression shaft.

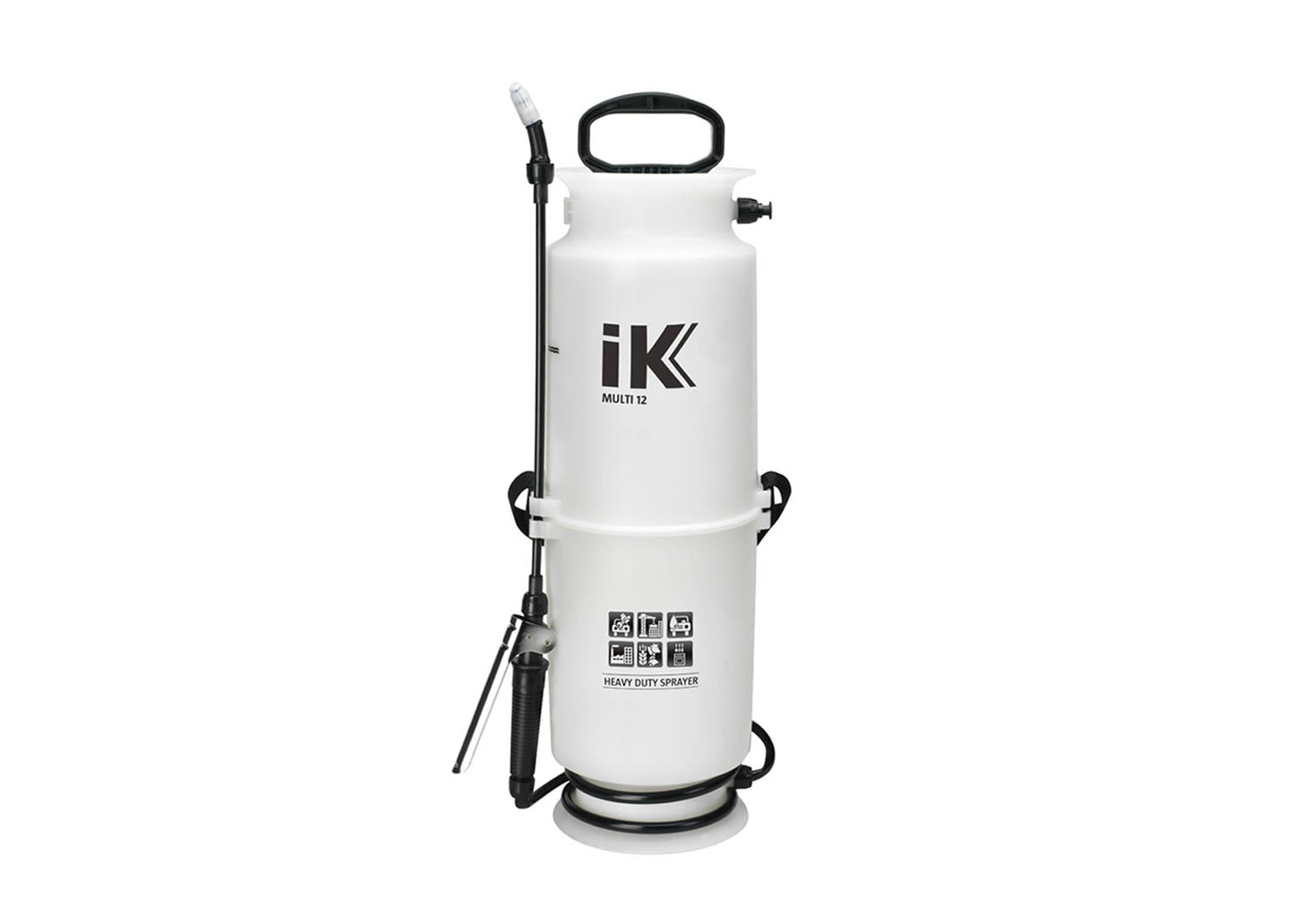

This kit can be used for all of the sprayers within the IK Multi range; so the IK6, IK9, and IK12.
SKU:3567
Couldn't load pickup availability
In stock
View full details
Collapsible content
Product Description
This sprayer repair kit contains 9 parts that are most commonly replaced during maintenance of your IK Multi sprayer or when leaks occur; this includes the O-ring that creates the seal between the spray elbow and nozzle, two O-rings that are found on the spray lance, another O-ring for the spray handle, and for the pressure release valve. There is also an O-ring, one-way valve and compression gasket for the compression shaft.
These IK sprayers are a quality item and should not be treated as throw away sprayers. We stock all of the replacement parts our sprayers so with a little care, your sprayer can serve you for many years.
Product Specification
Brand - IK sprayers
Seal Material - Viton
Maximum Pressure - 3 bar
Tank Material - plastic
Piston Ring - included
Range - IK Multi (compression sprayers)
FAQs
How do I know which repair kit I need?
If you aren't sure which of the kits is designed for your sprayer then please just get in touch with us and we will point you in the right direction.
What is a piston ring?
The piston ring sits inside the compression shaft and is attached to the end of the compression rod (opposite end to the pump handle). This moves up and down inside the shaft as you pump the handle to increase or provide pressure. It therefore moves a lot and must create a complete seal within the shaft otherwise there will be a leak of air and you will find it hard to build or maintain pressure. As it moves so much it can slowly wear so may need to be replaced.
Is it difficult to change these parts?

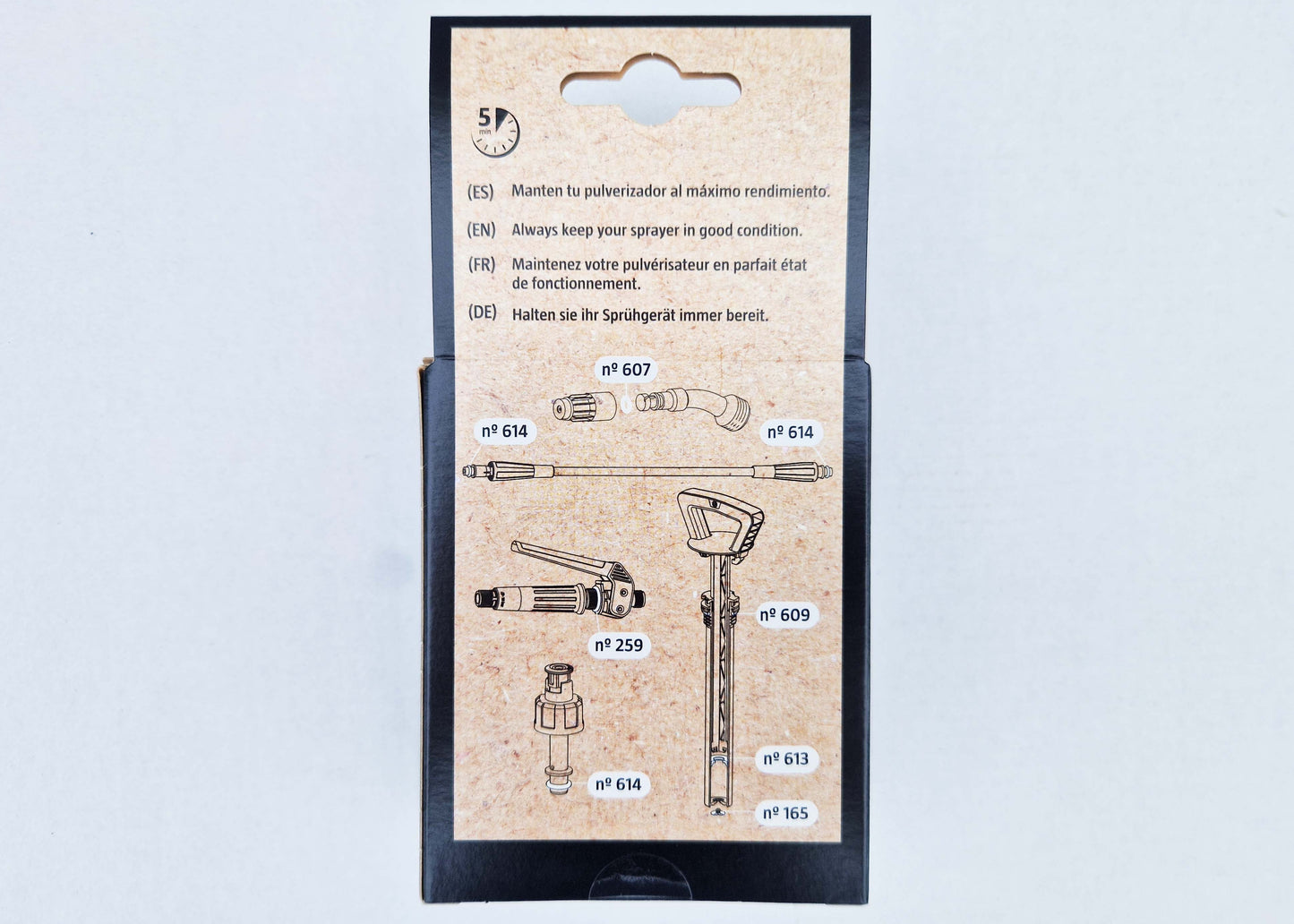

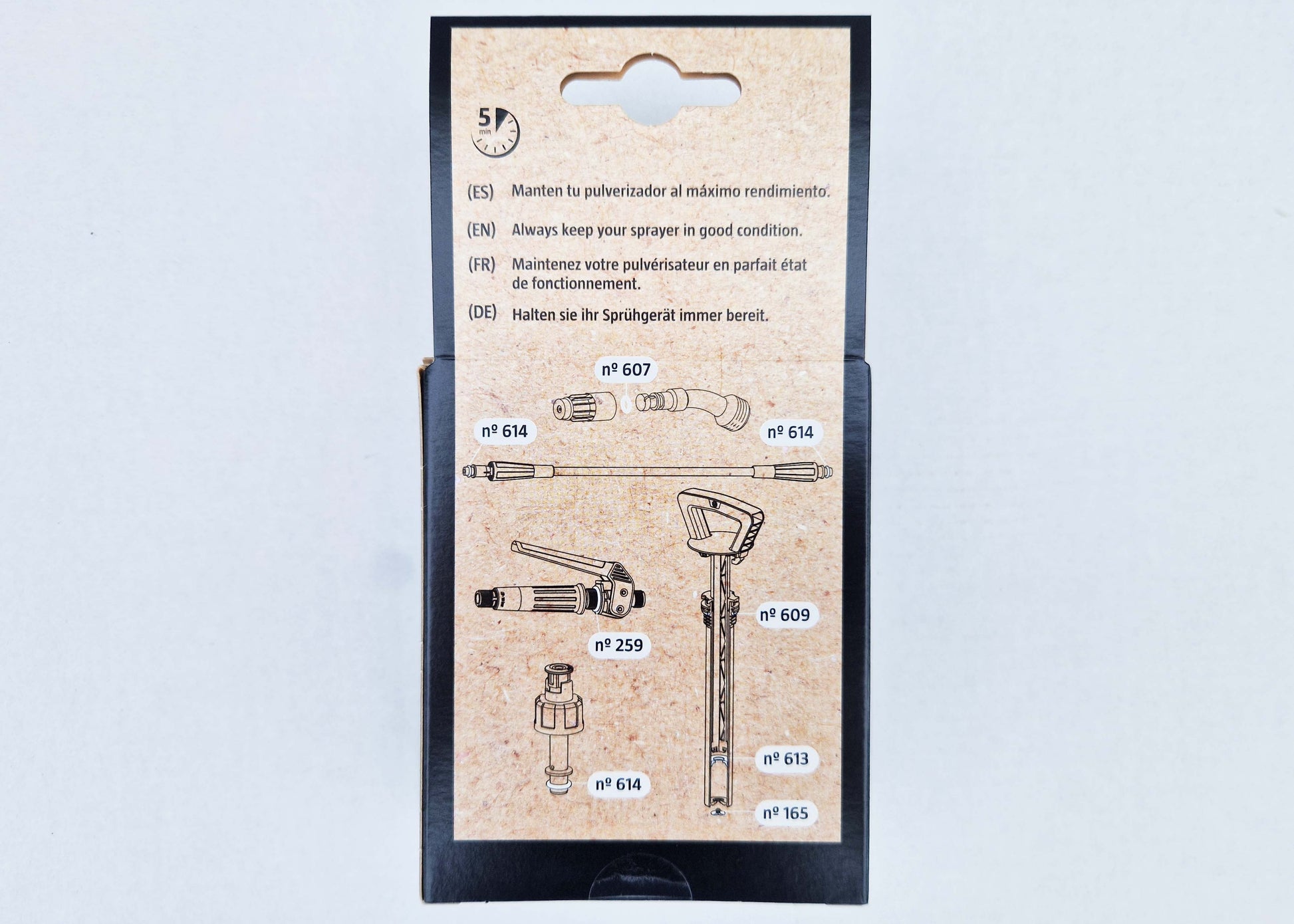

It really isn't difficult to change these seals. We suggest doing the work on a table top to ensure that if anything is dropped it won't be lost and to clean the parts both before any after the change. There are diagrams on the rear of the pack that show which ring goes where so just take your time and if you aren't certain of something then we are here to help.
